The silo is a further development of the ingma smooth-walled silos in plug-in design. The new silo is welded airtight from the inside and outside and has been ground seamlessly smooth on the inside, thus guaranteeing the best possible hygiene.

Due to the design in one piece, without gaps due to assembly butt points and smoothly ground weld seams in the interior area as well as the design of the parts that come into contact with the product in stainless steel 1.4301, the specifications of the EC regulation no. 1935/2004 are permanently guaranteed.

The silo body consists of a silo shaft, discharge funnel and cell ceiling. The silo walls are made in a sandwich construction, in which an inner skin made of 2.0 - 3.0 mm stainless steel sheet and an outer skin made of 2 mm steel sheet are separated by an 80 mm air space. The absolute tightness of this air space can only be guaranteed for the entire silo body if it is manufactured in one piece. When storing ground-warm goods, rapid temperature differences are delayed by the insulating air layer of the 80 mm sandwich construction and the formation of condensation with the consequences of mold formation is largely avoided. The cell ceiling is designed for a traffic load of 2.5 kN/m².

The silo is manufactured in one piece and delivered in one piece after successful testing and acceptance.

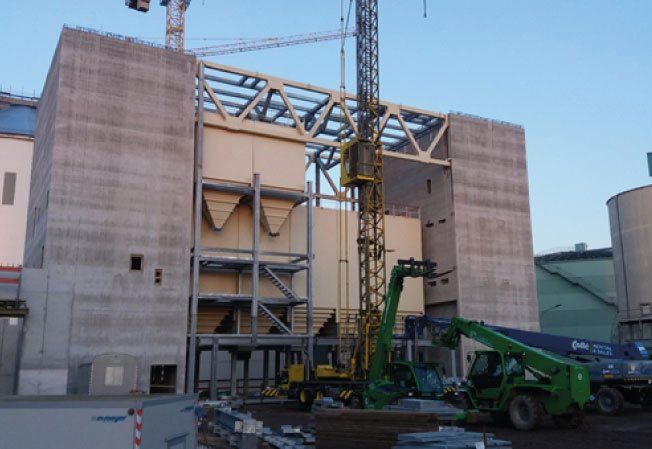

The silo body has appropriate eyelets so that it can be transported both horizontally and set up vertically. A main crane and a smaller auxiliary crane are required for assembly. This compact design minimizes assembly costs.

The scope of delivery includes the provision of a testable but untested static calculation of the silo in accordance with Eurocode 3.

In the case of silo cells without pressure relief, the introduction of sparks into the silo cells must be prevented by appropriate protective measures on site.

tech Data:

Total height: up to 20 m

External dimensions max. 4.0 x 4.0 m
